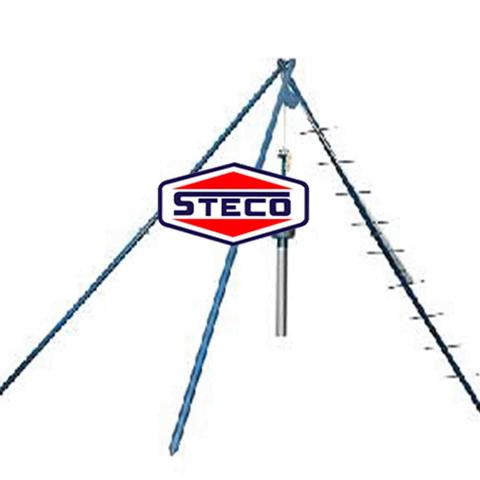

STANDARD PENETRATION TEST KIT

Introduction:

Consists of Drive Weight, 65 kg, fitted with chain.

Guide Pipe Assembly, fitted with a driving head on one side having standard "A" drill rod thread & a cap on the second side. Drive weight falls freely through a height of 75mm

Tripod stand,6 meter high connected by a tie bolt. Each leg is made of three part for easy transport. Complete with pulleys and stairing arrangements.

Tripod stand 5 meter long Each leg is made of two parts. Complete with pulley & stirring arrangement.

Pulley Spare.

"A" Drill Rod 1 meter long.

"A" Drill Rod 1.5 meter long.

"A" Drill Rod 3 meter long.

Sampling Auger D – 1452

SWELL TEST APPARATUS

Introduction:

The outfit comprises the following.

1. One loading unit Hand. operated 5000 kg capacity with two rates of travel

2. One Gun metal mould, 100mm dia x 127.3 cm height X 1000 cc volume with base plate & collar

3. One perforated swell plate 100mm dia X 16mm thick

4. One spacer 100mm dia X 12.7mm thick

5. Two porous stone of 100mm dia X 12.7mm thick

6. One load transfer bar

7. One steel ball & one soaking tank, 250mm dia x 210mm high

8. Dial gauge 0.01mm X 25mm travel

9. Proving ring of 2.5 KN capacity with calibration chart and carrying case.

General Description & Specification:

High sensitivity Proving Ring, 250 kg or 500 kg fitted with 0.002 mm dial gauge with certificate in a nice wooden carrying case.

Dial Gauge 0.01mm x 25mm travel.

TRIAXIAL LOAD FRAME

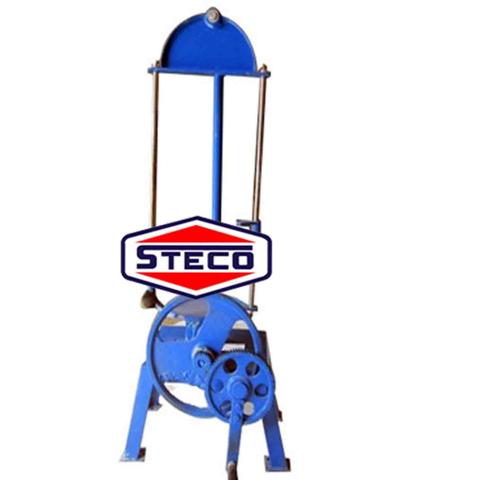

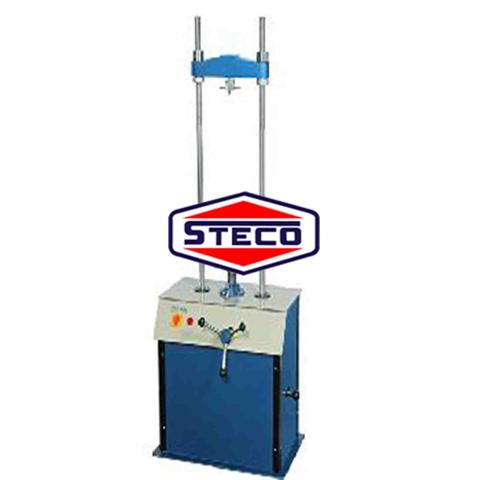

UNCONFINED COMPRESSION TESTER


Introduction:

Proving ring type. Comprises of a hand operated load frame, cap. 30KN (3000 kgf.) screw jack for loading, handle and strain dial gauge bracket, adaptor for proving ring, conical seats and male/female coning tools for 38 mm dial samples. Supplied without proving ring and dial gauge.

General Description & Specification:

Comprises a screw operated load frame capacity 50 KN (5000 kgf.) with a gear box and motor drive giving 1.25, 1.5 and 2.5mm/min, rates of strain, pair of cone seating, adaptor for proving ring and strain dial gauge bracket. Supplied with one pair of male/female coning tools for 38 mm dia samples but without proving ring and dial gauge. Suitable for operating on 230 volts, single phase AC Supply.

Optional Accessories:

IS : 2720(Part-X), IS : 4332(Part-V)

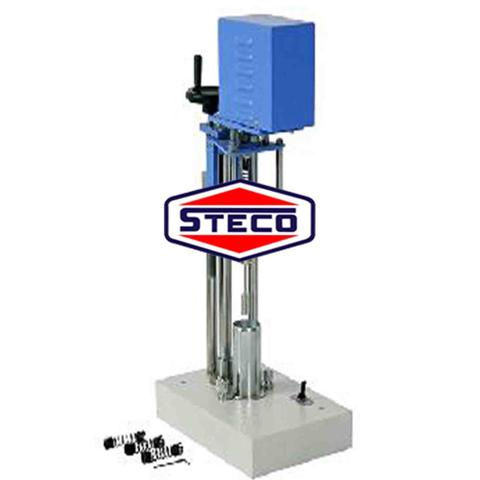

UNIVERSAL AUTOMATIC COMPACTION APPARATus

Introduction:

It is a motor driven mechanical compactor useful for soil compaction into 100mm or 150mm dia moulds. Two sets of rammers are provided, one of 2.6kg. And the other of 4.89 kg arranged for 310mm and 450mm fall respectively. For compaction soil into 150mm dia moulds, 100mm face dia rammers having weight of 4.89Kg is used. Where as for 100mm dia moulds, they are of 50mm dia. The rammer assembly is provided with a ratchet and pawl arrangement to lift it from the top of the soil layer. When the rammer reaches the required height the pawl release the rammer, which falls freely on soil surface. The release mechanism is connected by an arm moving up and down which is connected to a reduction gear coupled to the motor through another arm. An automatic blow counter fitted to the compactor is used to set the number of blows. The base plate of the specimen mould is to be fitted to the rotating base plate of the instrument which makes 1/5th revolution per operation. Operation on 230 volts, 50 cycles, single phase, A.C. supply, Moulds are to be ordered separately.

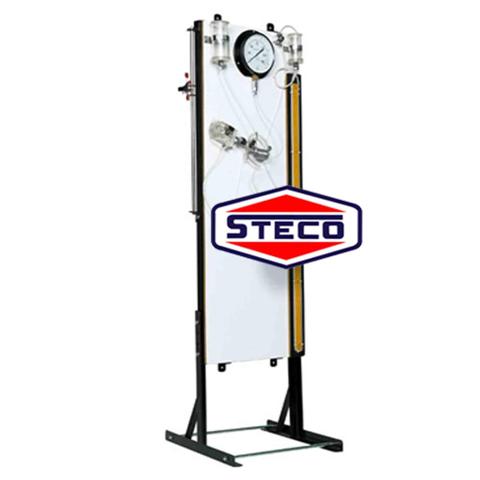

BISHOP PORE PRESSURE APPARATUS

Introduction:

Consists of panel for wall mounting on which are fitted wall mounting on which are fitted 1.0 to 10Kg/cm2 x0.1Kg/cm2 a pressure gauge, Bourdon tube 20cm dia.

General Description & Specification:

Manometer

Glass U-tube manometer for measuring low positive pore pressures negative pore pressures and checking zero error of pressure gauge. It is provided with a mercury trap (Mercury supplied at extra cost ) Null indicator made out of clear transport perspex with mercury trap and cursor to indicate the mercury level.

Burette

50 ml Burette for measuring the volume change in the soil specimen. Pressure pump fitted with four sleeve packed valve, Operated by means of a hand wheel on the end of the piston rod which is threaded thru the pump cap and gives a smooth, fine adjustment of pressure copper coil and water reservoir.

The unit is tested against leaks upto 10Kg/cm2

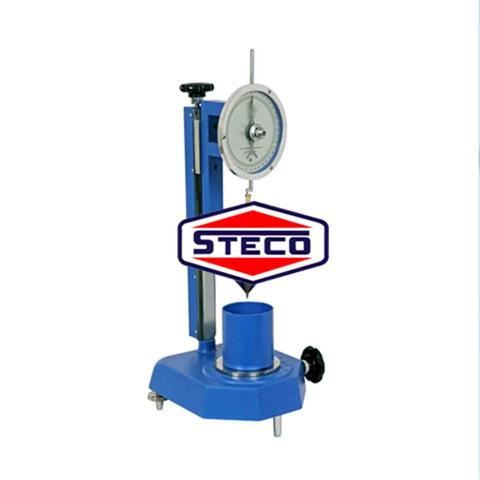

CONE PENETROMETER

Introduction:

It will consist of metallic cone with half angle of 15 -30 ±15 and 30.50mm coned length. It will be fixed at the end of a metallic rod with a disc at the top of the rod so as to have a total sliding weight of 148± 0.5 gms. The total rod shall pass through two guides. (to ensure vertical movement) fixed to a stand. Suitable provision will be made for clamping the vertical rod at any desired height above the surface of the paste in the trough. A brass trough 50 mm internal diameter and 50 mm depth will be provided as per IS specification resting on M.S.bars.

General Description & Specification:

Ground Glass : 10mm thick and about 45 cm square or larger rough glass as per IS 2720 (Part V-1985) for mixing soil and water

Spatula : Flexible with blade about 8 cm long and 2 cm wide made from stainless steel material as per IS:2720 (part V-1985)

Evaporating dish : Made from porcelain material having diameter of about 12 to 15 cm with smooth surface as per IS 2720 (part V-1985)

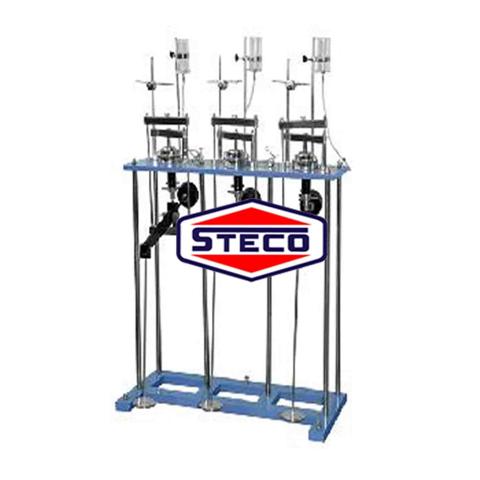

CONSOLIDATION TEST APPARATUS

Introduction:

SINGLE GANG

THREE GANG

SIX GANG

Loading Unit, maximum capacity 20 kg/cm2 consisting of a loading yoke connected to a lever arm with a counter- balancing adjustment and having a lever ratio of 1:10, the whole assembly being mounted on a steel frame stand.

Consolidation cell assembly, fixed ring type for testing 60 mm dia x 20 mm thick specimens comprising :

Fixed ring for specimens 60 mm dia x 20 mm thick with a guide ring.

Top porous stone for 60 mm dia specimen.

Bottom porous stone for 60 mm dia specimen.

Pressure pad, perforated

Channeled base with water inlet.

Gasket.

Flanged water jacket,

Set of weights to give a pressure of 10 kg/cm2 on 60 mm specimen. Comprising : 7 off 0.05 kg/cm2, 5 off 0.1 kg/cm2, 6 off 0.2 kg/cm2, 6 off 0.5 kg/cm2, and 5 off 1.0 kg/cm2.

Water reservoir with plastic tube, T-connection and pinch cock.

Dial gauge, 0.01 mm x 25 mm travel

CONSTANT OIL AND WATER PRESSURE APPARATUS

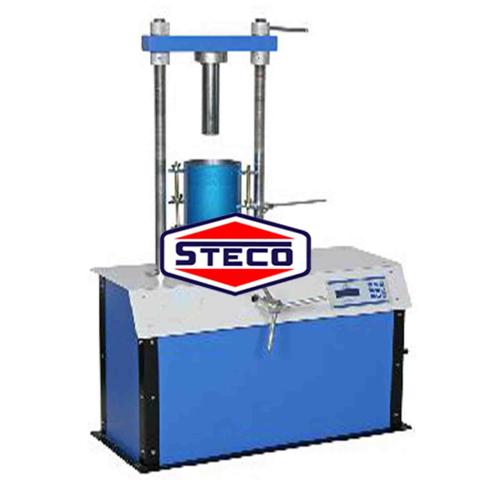

DIGITAL C B R APPARATUS

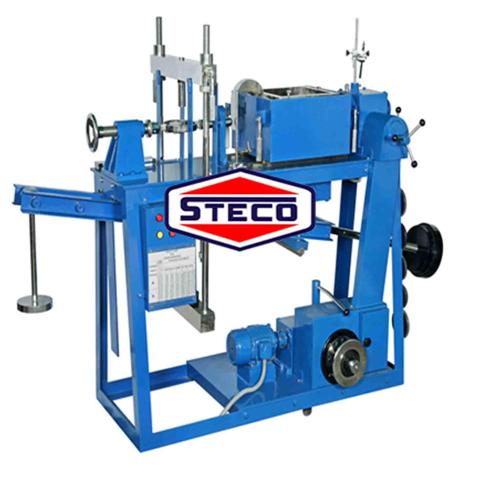

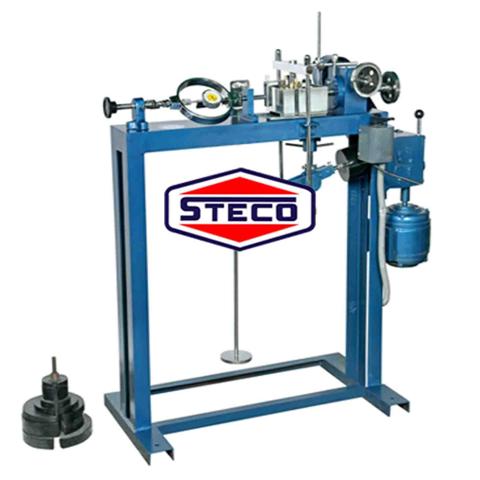

DIRECT SHEAR APPARATUS - MOTORISED MODEL


Introduction:

Supplied with loading yoke with direct and lever for applying load. Normal stress capacity 8Kg/Sq.cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading. yoke. The loading unit is provided with V strips and roller strips for frictionless movement of shear box housing.

Consists of loading unit, shear box assembly for 60 mm x 60 mm x 25 mm complete with two halves of loading pad, one base plate. All made of gunmetal with two porous stones. Share box housing of gunmetal, specimen Cutter of steel with set of weight to give normal stress of 3 kg/cm2. through lever as follows.

To give kg/cm2. Qty.

0.05 - 4Nos.

0.1 - 1No.

0.2 - 1No.

0.5 - 3Nos.

1.0 - 1No.

Multiple reversal type, Motorised, Single speed , electrically operated to give a single constant rate of strain of 1.25mm/min. Suitable for 230v. A.C. Without dial gauge and proving ring. AS PER IS:2720 (PART VIII)

Unit is electrically operated to give the following 12 rates of strains. 1.25, 0.625, 0.125, 0.05, 0.01, 0.005, 0.002, 0.001, 0.0004 and 0.0002mm/min. The apparatus is suitable for operation on 230 volts single phase A.C. supply. Without dial gauge and proving ring.

DIRECT SHEAR APPARATUS LARGE SIZE

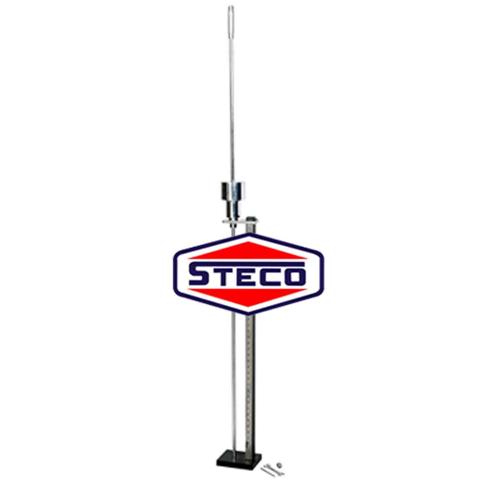

DYNAMIC CONE PENETRATION APPARATUS


Introduction:

Consists of one cone, plain 50 mm base dia and cone angle 60°, one cone adaptor, guide pipe assembly with one end cap and one driving head with threads for "A" rod coupling. Tripod stand 6 meter height with built in ladder with pulley arrangements. Drive weight 65 kg fitted with chain. As per IS : 4968 (Part I)

General Description & Specification:

"A" drill rod, 1.5 meter long, one side male thread and the other side female.

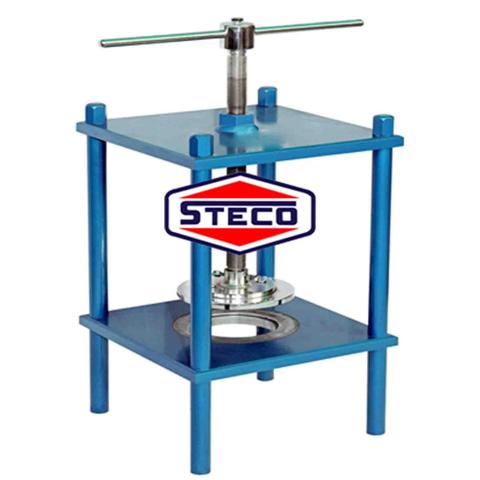

EXTRACTOR FRAME - UNIVERSAL

Introduction:

Comprises of a frame designed for screw jack operation, one each of the adaptor plates and plunger adaptors for 38mm, 75mm, diameter, 100mm diameter, 150mm diameter, specimens and a stand to obtain simultaneously three 38mm diameter samples from one 100mm diameter sample. The adaptor plate which slides a long the slotted supports can be clamped at any desired position by means of locking nuts. Beside this, the tube or mould can be held in position by raising the tube guides and held in position with locking screws. the lead screw movement can be stopped at any predetermined position by tightening the lead screw locking collar. Plunger adaptor for 200mm dia samples. Adaptor plate with 200mm dia hole and device to extract 3 number 38mm dia samples.

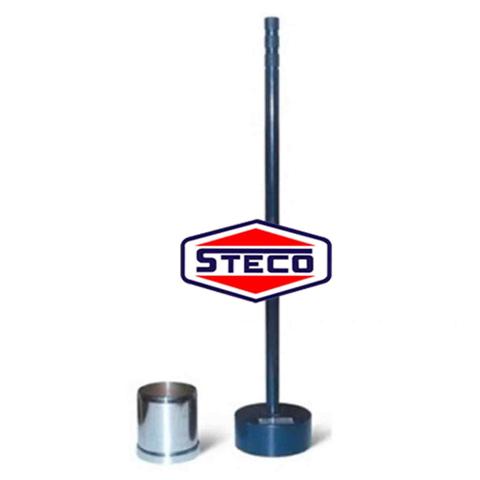

FIELD DENSITY TEST APPARATUS - CORE CUTTER

Introduction:

Cylindrical Core Cutter: It shall be of seamless steel tube, 130 mm long and 100 mm internal diameter with a wall thickness of 3 mm, bevelled at one end,( as per section 2.1)

Steel Dolley: It shall be 25 mm high and 100 mm internal dia with a wall thickness of 7.5 mm with a lip to enable it to be fitted on top of the core cutter.

Steel Rammer: It shall have solid mild steel foot of 140 mm diameter and 75 mm height with a concentrically screwed 25 mm dia. Solid mild steel staff. The overall height of the rammer including the foot as well as the length of staff shall be approximately 900 mm.

The foot and staff together shall weight approx, 9.0 Kg.

Pallete Knife: It shall have a blade of stainless steel approximately 200 mm long & 30 mm wide (Stainless steel spatula ).

Scraper: A steel strip about 300 mm long, 25 mm wid & 3 to 5 mm thick with one bevelled edge with suitable to level off ground.

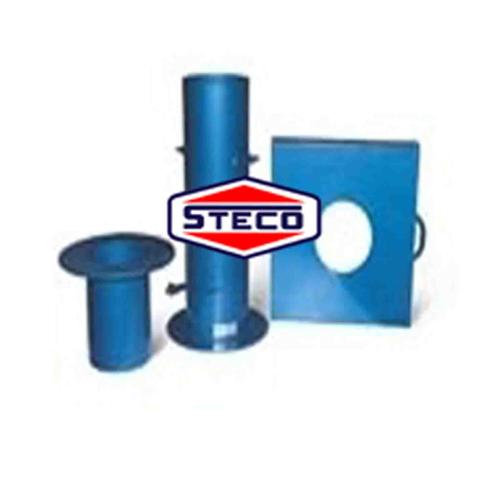

FIELD DENSITY TEST APPARATUS - SAND REPLACEMENT

Introduction:

SAND REPLACEMENT METHOD: Three sizes Available.

  • 10cm (Small Size)
  • 15cm (Medium Size)
  • 20cm (Large Size)

10cm (Small Size) :-

Sand Replacement Method. Consists of Sand Pouring Cylinder, one calibrating container 10 cm dia & a square tray of 30 cm x 30 cm with a central hole of 10 cm diameter. Relevant Standard : IS : 2720(Part-XXVIII)

15cm (Medium Size) :

Sand Replacement Method. Consisting of Sand Pouring Cylinder container metal tray hole in the centre.

20cm (Large Size) :

Sand Replacement Method. with calibrating container of 250mm internal depth, one metal tray 450 mm square and 50 mm deep with a 200 mm dia hole in the centre.

FIELD TYPE C B R APPARATUS

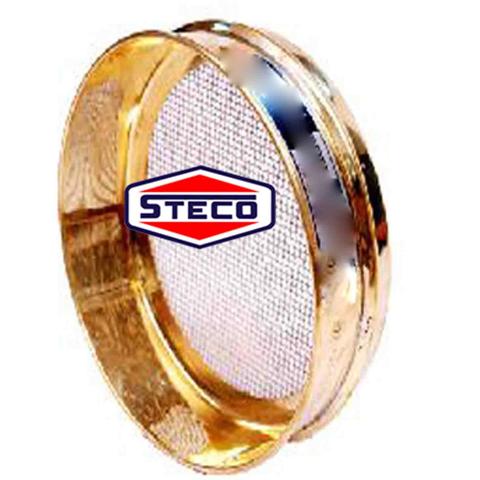

FINE SIEVES

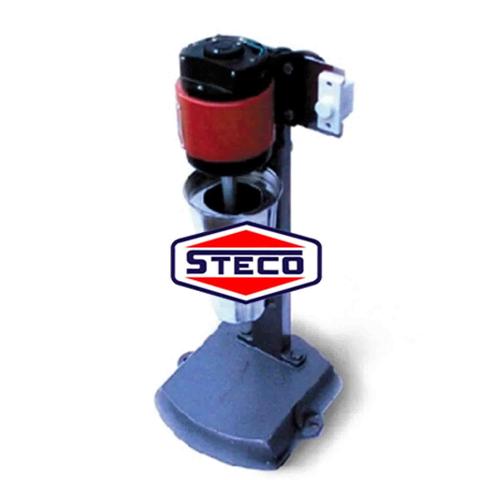

HIGH SPEED STIRRER


Introduction:

A mechanical stirring device in which a suitably mounted induction motor will have a vertical shaft having speed of 6000 to 8000 revolutions per minute when loaded. The shaft will be equipped with a replaceable stirring paddle of either of the types and made of metal. The surface will be of such length that the stirring paddle will operate not less than 20 mm and not more than 35 mm above the bottom of the dispersion cup. The dispersion cup will be supported on a rest and shall have a removable baffle. A special dispersion cup conforming to either of the designs shown in IS 2720 (Part IV) 1985 will be provided to hold the sample while it is dispersed. The stirrer will be free from vibration whilst operation and the base will be made of M.S. of at least size 20 cm X 25 cm with rubber cushions. The container and baffle will be of such material as not be affected by the reagents like sodium Carbonate, Sodium silicate , Sodium Hexametaphosphate etc. The stirrings device will be suitable for operation on 230-250 Volts A C with controller switch for different revolution. It will be provided with 3 core wiring of with off-on switch on side. The dimensions of stirring paddles for stirring apparatus and dispersion cup will be as per IS 2720(Part IV)1985.

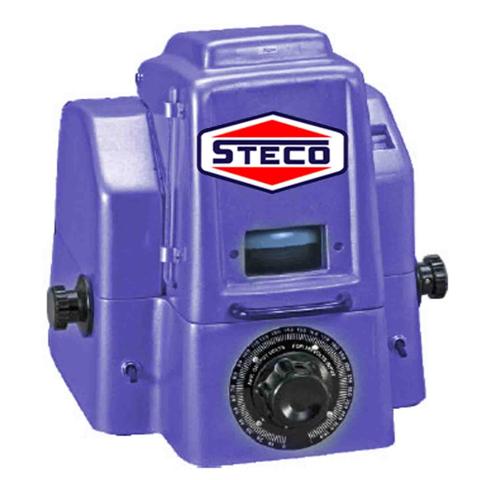

INFRARED MOISTURE BALANCE

Introduction:

With solid state electronic Regulator. Very easy to operate with and accuracy of 0.2% by direct reading,0.1% by estimation, complete with "L" Bend thermometer with pans cap.5 or 10 or 25 grams.

General Description & Specification:

This is very reliable and sturdy instrument for an accurate determination of the moisture content of materials which do not undergo chemical change when exposed to infra red radiations. The instrument is specially useful for the substances which quickly reabsorbs moisture after drying. Observations can be taken quickly and the results obtained are accurate. The instrument can be used for reliable determination of moisture content of agricultural soil, foods, chemicals, plastics, Pharmaceuticals, construction soils and other similar materials. The instrument consist of a 250 watt infrared lamp, a sensitive torsion balance and a temp. Control, all housed in a compact cabinet made of Aluminium, having robust design. The Infra Red radiation from the lamp is used for heating the sample. The temp. is controlled by the solid state control. The sensitive torsion balance used magnetic damping to damp the vibrations of the pan. The instrument is directly calibrated in percentage of moisture between 0 to 100%.The Aluminium pans are cheap and disposable. This helps avoid loss of time which otherwise would be spent each time to clean the pans after the experiment is done. Complete with instruction manual. It is available in following Capacities to suit individual requirements.

Capacity 5g (Approx.): For applications in pharmaceuticals, light powders, chemicals, detergent.

Capacity 10g (Approx): For grains, rice, relatively heavy grained products etc.

Capacity 25 g (Approx.) For Coal, Cashew nuts, Sand, Agricultural Soil etc.

OR

Delux Model with auto transformer (Variac)With a superior quality variac for a long life andbetter control of temperature. Available in all the above three models

Optional Accessories:

The instrument can be supplied with Digital timer with alarm. This timer gives a continuousbuzz after turning the infrared lamp off after specified time.

N.B. We can also supply more Sophisticated and accurate Digital Moisture Balance.

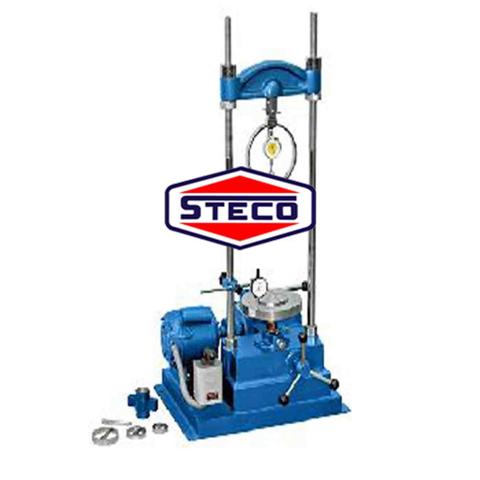

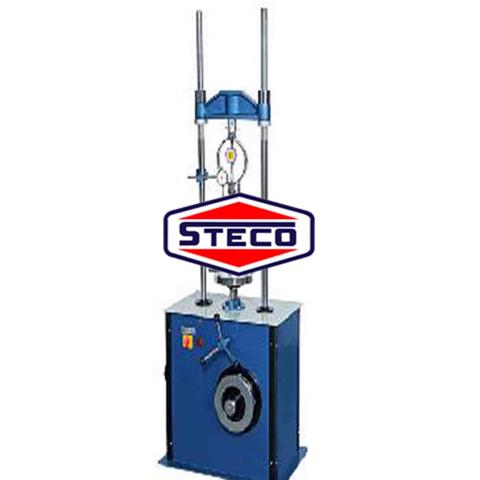

LABORATORY C B R APPARATUS

Introduction:

Complete with Load frame, Hand Operated/Electrically Operated 5000 Kg capacity, C.B.R. Mould, Penetration Piston, Perforated Plate, Displacer Block, Anuular/Slotted Metal Weight 2.5 kg, Metal Tripod Stand, Rammer 2.6 kg/4.89 kg., with Calibration Certificate.

General Description & Specification:

C.B.R. Mould,150 mm dia X 175 mm high with extension collar & perforated base plate. Mild steel.

Made of Gunmetal

Made of Mild-Steel

Same as above but Zinc Plated

Penetration Piston, face dia 50 mm with adjustable bracket.

Perforated plate, 148 mm dia with adjustable stem and lock nut gunmetal.

Displacer block, 148 mm dia X 47.7 mm high with detachable handle.

Annular metal weight, 2.5 kg, 147 mm dia with 53 mm dia central hole.

Slotted metal weight, 2.5 kg, 147 mm dia with 53 mm dia slot.

Metal tripod stand for dial gauges.

Cutting collar with chromium plating.

Rammer 2.6 kg weight with a drop of 310mm

Rammer 4.89 kg with weight with a drop of 410mm.

High sensitivity proving ring,1000 kg capacity fitted with 0.002mm dial gauge with calibration certificate in a nice teakwood case.

LABORATORY VANE SHEAR

Introduction:

Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotation of the vane is by means of a hand wheel which operates a worm gear arrangement turning the upper end of a calibrated torsion spring. Vane dia, rod dia, vane size & vane height are as per IS specification.

General Description & Specification:

The Vane shaft is attached through the hollow upper shaft to resettable pointer, which indicates the angle of torgue on a dial graduated in degrees. The dial reading multiplied by spring factory gives the torque. A container for soil tube of 38mm I.D. & 150 mm long can also be used as container. Complete with set of springs, one each of approx 0.2kg/cm,4kg/cm,6 kg/cm,8 kg/cm in a nice teak wooden carrying case.

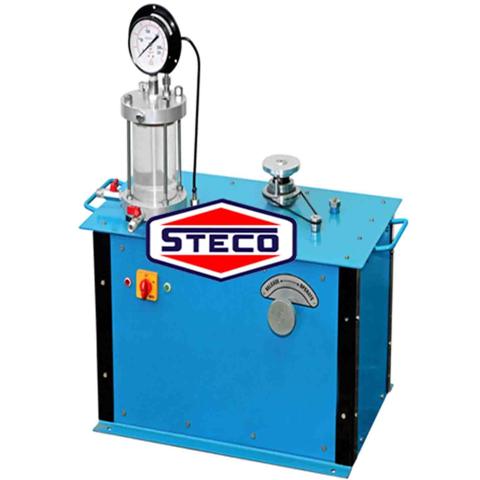

LATERAL PRESSURE ASSEMBLY

Introduction:

The apparatus consists of a pressure chamber which has a flanged top cap fitted with a 10Kg/Cm2. Pressure gauge and a valve for pumping in air. Water inlet and drain cock are fitted to the chamber. The foot pump supplied easily develops a pressure of 10Kg./Cm2 Complete with connecting pressure hose.

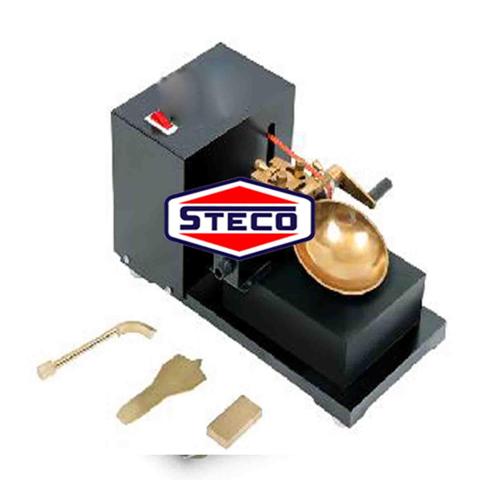

LIQUID LIMIT DEVICE

Introduction:

With consists of a brass cup held on an adjustable bracket. The bowl can be adjusted for a fall raised & dropped on a rubber of standard hardness by cam action. Complete with one casagrande grooving tool, one ASTM grooving tools and a height gauge block. Hand operated, with counter. As per IS : 2720 (Part-V), IS : 9259, BS : 1377, AS : 89

General Description & Specification:

IS : 2720 (Part-V)

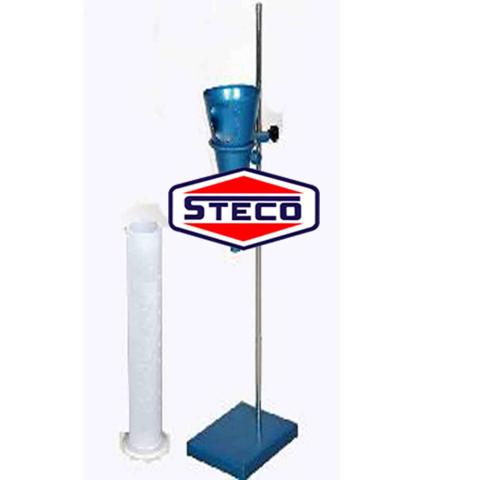

MARSH CONE FUNNEL

Introduction:

This cone is used to find out viscosity of bentinite slurry and like material. The marsh cone is 6 inch in diameter at the top and 11 inch(280mm) long, and tapers to join a tube 2 inch long and 3/16 inch side dia. The capacity of the funnel is 1500 cc. Time in seconds required to flow out 1000 cc of slurry from cone is measured as funnel viscosity of the material.

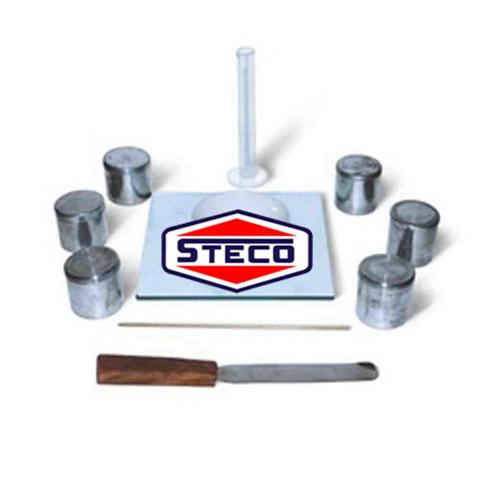

PLASTIC LIMIT DEVICE

Introduction:

The Complete set consists of one each :

  1. Glass plate 20cm X 15cm having ground ends and one side frosted.
  2. Brass or stainless steel rod 3mm dia X 150mm long - 2 Nos.
  3. Flexible spatula.
  4. Set of 6 moisture containers.
  5. Porcelain basin 150mm dia.

Packed in nice polished wooden box

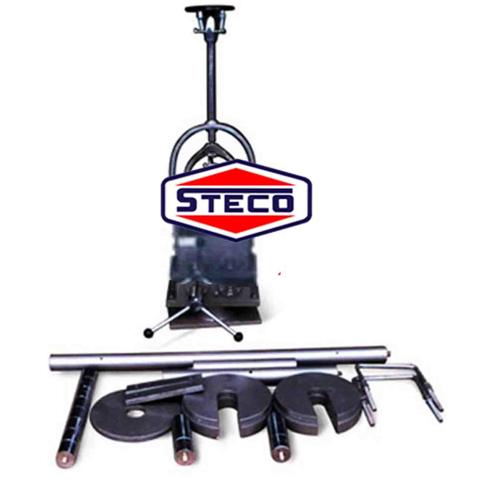

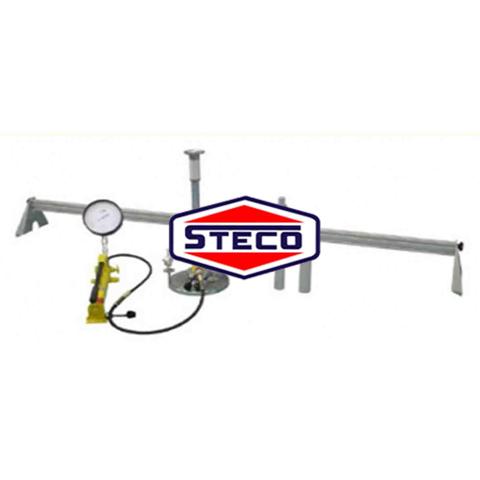

PLATE BEARING TEST APPARATUS

Introduction:

Consist of the following.

Hand operated Hydraulic jack with pressure gauge capacity 50 tonne with 5 meter long metal tube with end coupling - 1 No.

Ball and Socket arrangtement, consisting of two steel plate with one steel ball in between them.- 1 Set.

Extension rod, 12 mm dia X 25 mm long for taking dial gauge reading. - 16 Nos.

Magnetic base with female thread on top for holding extension rod. - 4 Nos.

Top end plate, 50 mm dia male thread for fitting on the extension rod. - 4 Nos.

Column 15 cm dia x 50 cm long with flanges complete with four bolts and nuts. 1 Nos.

Column 15 cms dia and 50 cms long with flanges complete with 4 bolts & nuts 1 No.

Datum bar, light weight, portable, total span 5 meter, height approx 30cms mounted on two removable legs, made of 2 parts - 1 No.

Complete as above.

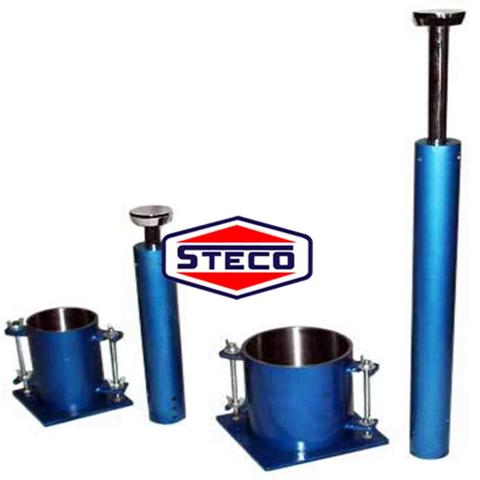

PROCTOR COMPACTION APPARATUS

Introduction:

1000 CC

It will be made of Mild steel having capacity of 1000 cc with an internal diameter of 100 + 0.1 mm and an internal effective height of 127.3 cm + 0.1 mm. The mould will be fitted with a detachable base plate and removable extension collar approximately 60 mm high. The internal surface of the mould will be smooth. It will conform to the requirements given in the IS 2720 (Part VII). Complete with our own test certificate.

Light Rammer

2.6 Kg x 310 mm fall. A metal chrome plated rammer having 50 mm dia. Circular and weighing 2.6 kg. The rammer will be equipped with a suitable arrangement for controlling the drop to the specified height of 310 mm. It will conform to the requirement given in the IS 2720 (Part VII), IS 9198.With our own test certificate.

2250 cc

It will be made of Mild steel having capacity of 2250 c.c with an internal diameter of 150 + 0.1 mm and an internal effective height of 127.3 cm + 0.1 mm. The mould will be fitted with a detachable base plate and removable extension collar approximately 60 mm high. The internal surface of the mould will be smooth. It will conform to the requirements given in the IS 2720 (Part VII). Complete with our own test certificate.

Heavy Rammer

4.89 Kg x 450 mm fall. A metal chrome plated rammer having 50 mm dia. Circular and weighing 4.89kg. The rammer will be equipped with a suitable arrangement for controlling the drop to the specified height of 450 mm. It will conform to the requirement given in the IS 2720 (Part VII), IS 9198.With our own test certificate.

PROCTOR NEEDLE - SPRING TYPE

Introduction:

The Instrument consist of needle attached to a spring loaded plunger. the stem of which is calibrated to read 0 to 40 kgs in 1 kg division. Long stem is graduated at every 12.5mm to read depth of penetration and for use with needles of larger areas. The small penetration steam is also graduated in 12.5mm division and is used with needles of smaller areas. Needle points one each of 0.25, 0.5, 1.0,1.5,2.0, 3.5, and 6.0 sq.cm. and one tommy pin is supplied. Complete as above in a wooden carrying case.

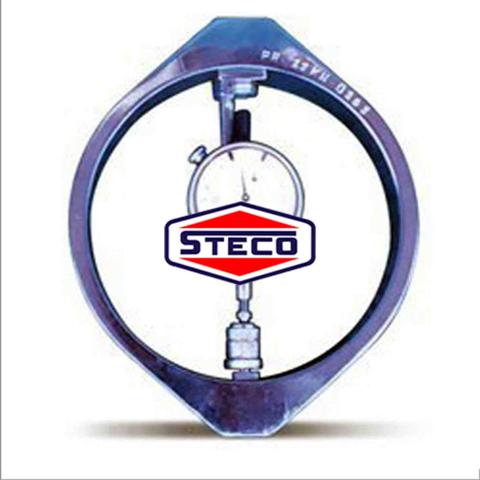

PROVING RING

Introduction:

These proving rings are made out of special steel, carefully forged to give maximum strength & machined to give the highest sensitivities commensurate with high stability and to ensure long life and accuracy. All proving rings are integral type viz. the loading (outside) bosses are forged integral with the ring body. This ensures that there is no possibility of abutment shift and consequent loss of accuracy in reading that always exists in rings with bolted abutments. The dial gauge and anvil are mounted on U-brackets clamped to the ring body by Allen set screws. The dial gauge is fitted with a special back cover and threaded bush which does not permit any shift from the original diametric alignment, coaxial with the loading boss centers, that is set at the factory before calibration. For all compression proving rings and tension compression proving rings up to and including 5 kN capacity (a little over 500 kgf) the loading bosses have female threading, 1/2" B.S.F. (16 t.p.i.) The boss faces are ground and polished and are lane parallel to within 0.02mm.total D.T.I. run-out. Caps are provided for use when loading in compression. Repeatability is as stipulated in IS : 4169-1967. The rings are supplied complete with dial gauge and our own calibration chart, packed in polished wooden boxes.

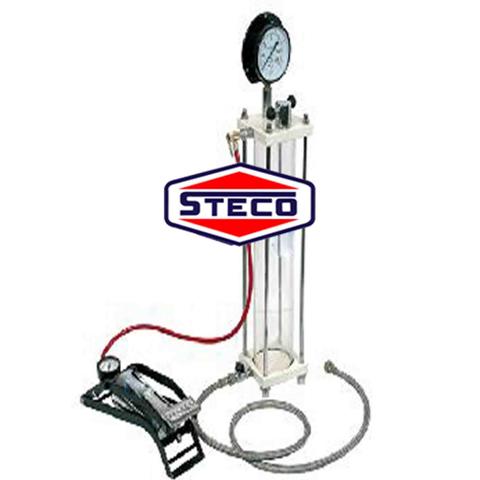

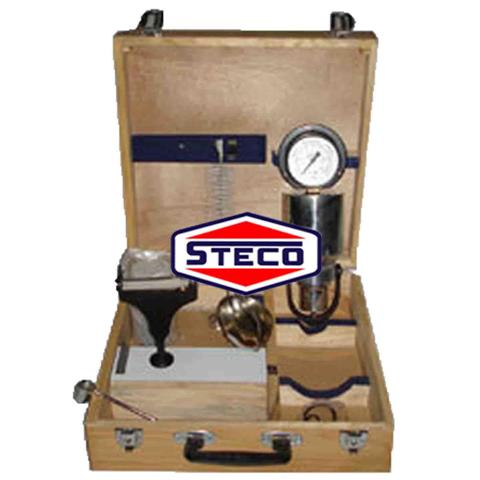

RAPID MOISTURE METER

Introduction:

The unit consists of a pressure vessel with clamp for sealing cap, rubber sealing gasket, pressure gauge calibrated in percentage moisture content 0-25% X 1% on the wet weight basis, a counter poised balance for weighing sample, a scoop for measuring carbide reagent, a bottle of reagent, one cleaning brush and a set of 4 steel balls(3 OF 12.5MM AND 1 OF 25MM DIA) for thorough mixing. Complete in highly polished wooden carrying case with handle. AS PER IS : 2720(PART II)

OR

Same as above but Deluxe Model with 150mm dia and horizontal pace readout moisture gauge.

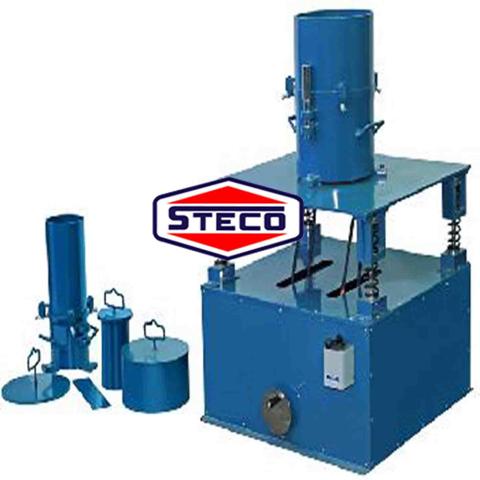

RELATIVE DENSITY APPARATUS

Introduction:

The equipment comprises a vibratory table 75mm x 75mm motorised 230 Volts, single phase A.C. cylinderical mould 3000 cm3 and 15000 cm3, guide sleve with clamp for moulds, surcharge base plate, surcharge weight for 3000 and 15000 cm3, handle for base plate, dial gauge holder, dial gauge 0.01 mm x 25 mm travel with extension piece calibration bar 75 x 300 x 3mm.

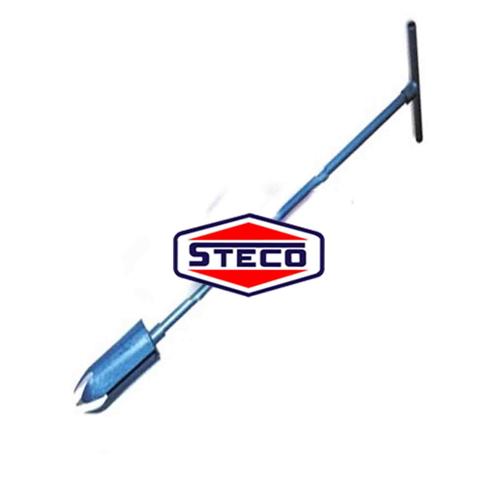

SAMPLING OUTFITS AUGERS

Introduction:

Sampling Auger, Screw type with one meter long extension rod, Tee piece handle.

  • 38mm
  • 50mm
  • 75mm
  • 100mm
  • 150mm

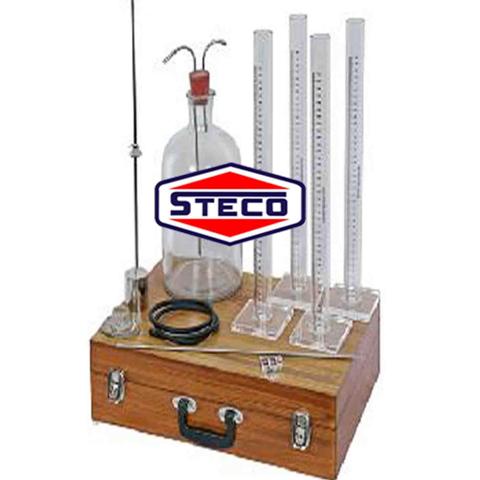

  • SAND EQUIVALENT VALUE TEST APPARATUS

Introduction:

  • 4 Plastic Measuring cylinders

    1 Carrying case

    1 Weighted foot assembly

    1 Irrigator tube

    1 Rubber tubing complete with pinch clip

    1 Syphon assembly, with 5 litre polythene bottle

    1 Funnel

General Description & Specification:

  • a) Syphon Assembly,with 5 litre polythene bottle required.Supplied without rubber tubing

    b) Calcium Chloride 2.5 kg

    c) Formaldehyde, 40% solution, 2.5 litres

    d) Glycerol Analar 2.5 kg

    SHRINKAGE LIMIT DEVICE


Introduction:

  • It is a motor driven mechanical compactor useful for soil compaction into 100mm or 150mm dia moulds. Two sets of rammers are provided, one of 2.6kg. And the other of 4.89 kg arranged for 310mm and 450mm fall respectively. For compaction soil into 150mm dia moulds, 100mm face dia rammers having weight of 4.89Kg is used. Where as for 100mm dia moulds, they are of 50mm dia. The rammer assembly is provided with a ratchet and pawl arrangement to lift it from the top of the soil layer. When the rammer reaches the required height the pawl release the rammer, which falls freely on soil surface. The release mechanism is connected by an arm moving up and down which is connected to a reduction gear coupled to the motor through another arm. An automatic blow counter fitted to the compactor is used to set the number of blows. The base plate of the specimen mould is to be fitted to the rotating base plate of the instrument which makes 1/5th revolution per operation. Operation on 230 volts, 50 cycles, single phase, A.C. supply, Moulds are to be ordered separately.

    SIEVE SHAKER - HAND OPERATED

Introduction:

  • This is a bench type model which is portable, sturdy and convenient for bench mounting. The side to side movement to the carrier which can take upto 7 sieves of 20cm diameter is through a chain of gears operated by a hand wheel.

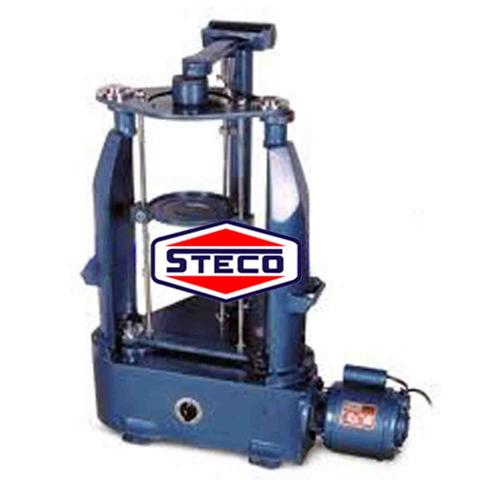

    SIEVE SHAKER - ROTAP

Introduction:

  • This Shaker reproduces both circular and tapping motion, Produces Circular (280-320 RPM approx) and tapping (140-160 RPM approx) motion with a uniform mechanical action which ensures accurate and dependable test results. This shaker is heavy in construction and no special foundation is required. The running parts operate in oil. A 1/4 H.P. electric motor runs the machine, the machine can accommodate six test sieves + set of Lid-pan but is supplied without sieves.

General Description & Specification:

  • This Shaker reproduces both circular and tapping motion, Produces Circular (280-320 RPM approx) and tapping (140-160 RPM approx) motion with a uniform mechanical action which ensures accurate and dependable test results. This shaker is heavy in construction and no special foundation is required. The running parts operate in oil. A 1/4 H.P. electric motor runs the machine, the machine can accommodate six test sieves + set of Lid-pan but is supplied without sieves.

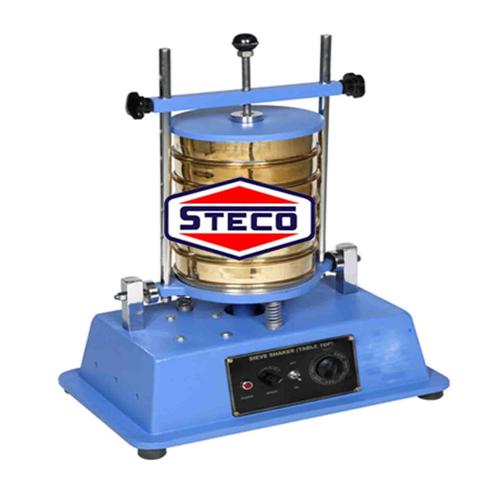

    SIEVE SHAKER - TABLE MODEL

  •

Introduction:

  • (Soundless) Vibration type cast iron body. Electrically operated Fitted with FHPElectric Motor inside the Body having speed regulator to increase of discrease the vibration. The table sieve shaker having the capacity of 6 test sieves of 20cm.dai(without test sieve and time switch.) Adaptor for 30 cm dia test sieves

General Description & Specification:

  • Digital Time switch 0-99 minutes for above

    Mechanical Time switch 0-60 minutes for above

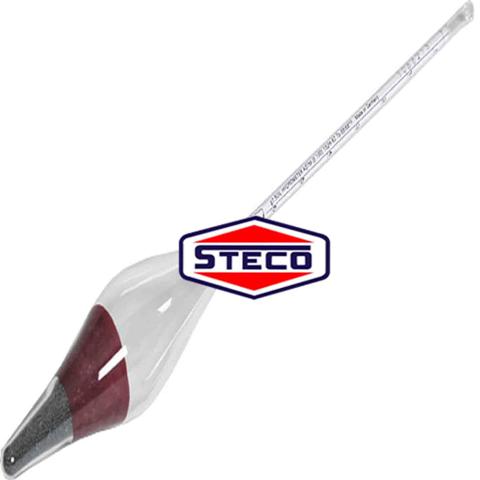

    SOIL HYDROMETER

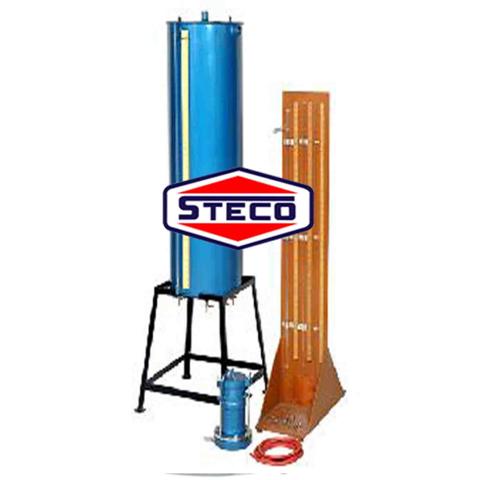

SOIL PERMEABILITY APPARATUS


Introduction:

Consists of gunmetal mould 100mm dia X 127.3mm height X 1000ml volume, with collar of 100mm dia X 60mm high and drainage base plate, Drainage cap, Metallic clamping ring, two porous stone for base and cap, Dummy plate, air release valve. With a set of three glass stand pipes approx.6mm, 10mm, and 20mm dia X 1 meter length mounted on a wooden board, the end of the glass tube is serrated to connect rubber tube of 3 meter length with pinch cock.
